Description
Electric control with simulator (head, portable unit, lab table, LED sensor light). Great integration for multimedia education and false tooth repair. It is a model machine for use in stomatology colleges and laboratory settings.

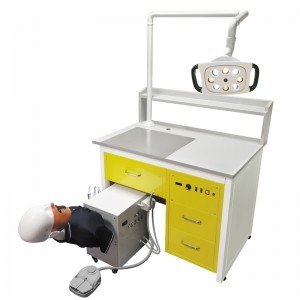

DENTAL SIMULATOR III DESIGN AND FUNCTION

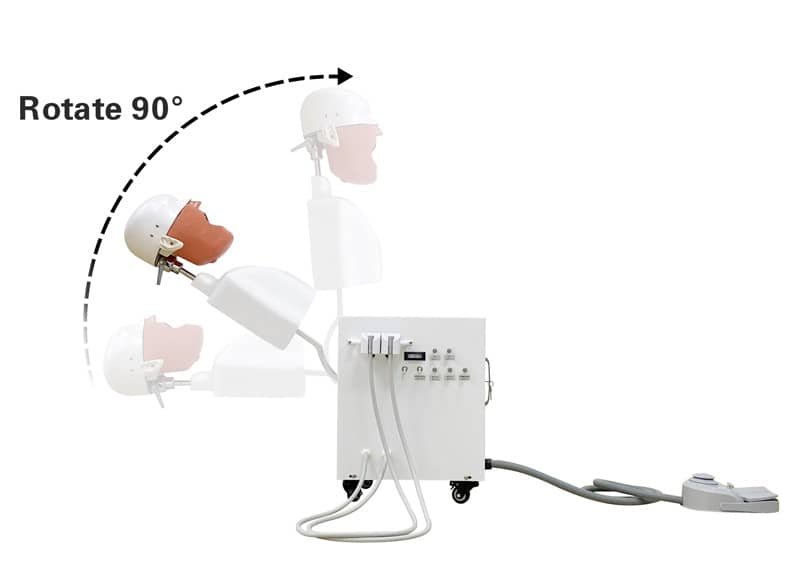

Electric Control with the Phantom Head
Full electric control for phantom heads makes it easier for students

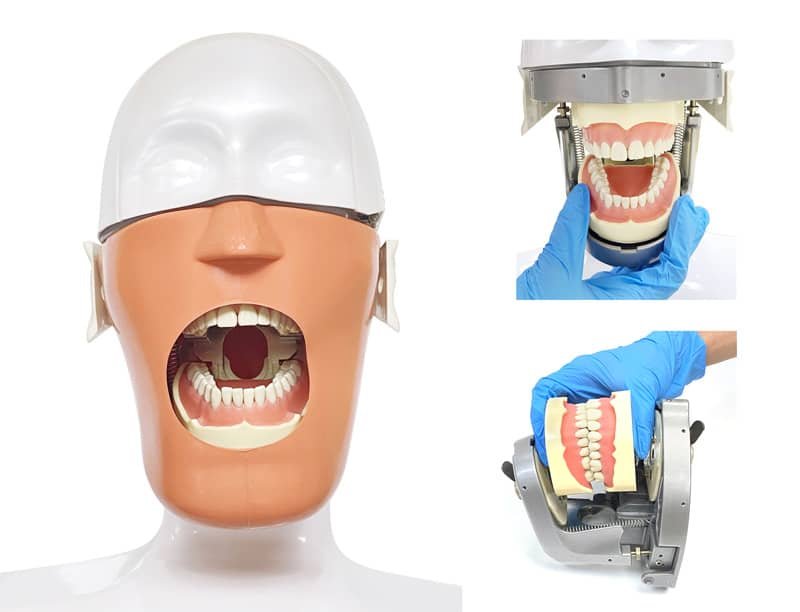

Advanced Jaw Frame
Made of stainless steel, with magnets to facilitate assembly and disassembly of the jaw models.

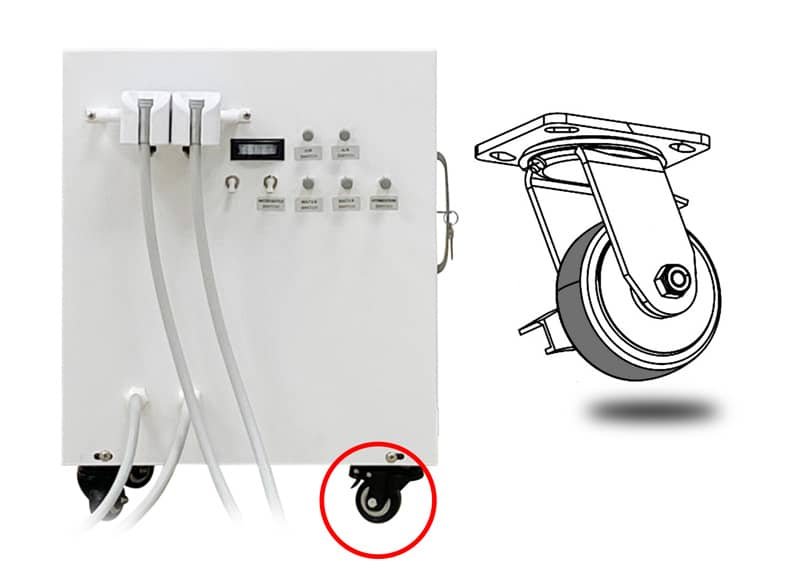

Portable Unit with Locks
Big space, good internal regulation for easier maintenance. Portable style, easy to move with locks.

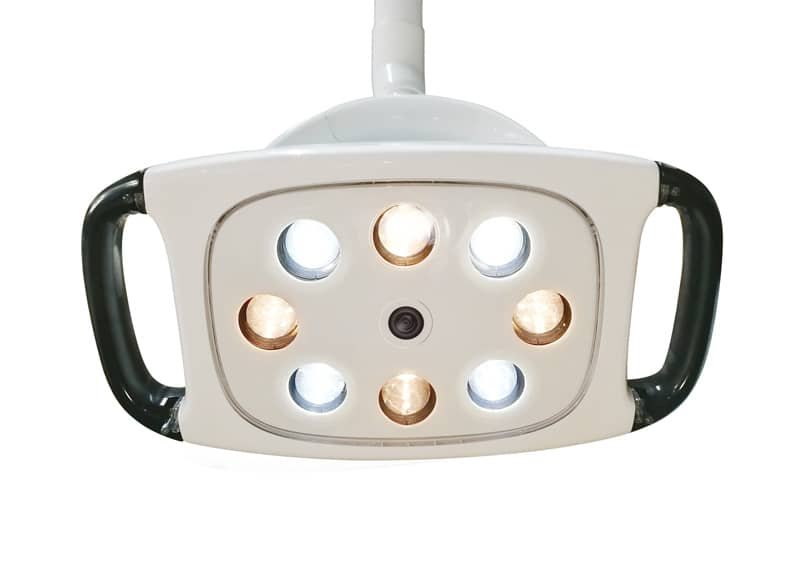

8 Eyes LED Sensor Light
To avoid directing sharp light onto the patient’s eyes and dentist’s eyes to cause discomfort during treatment

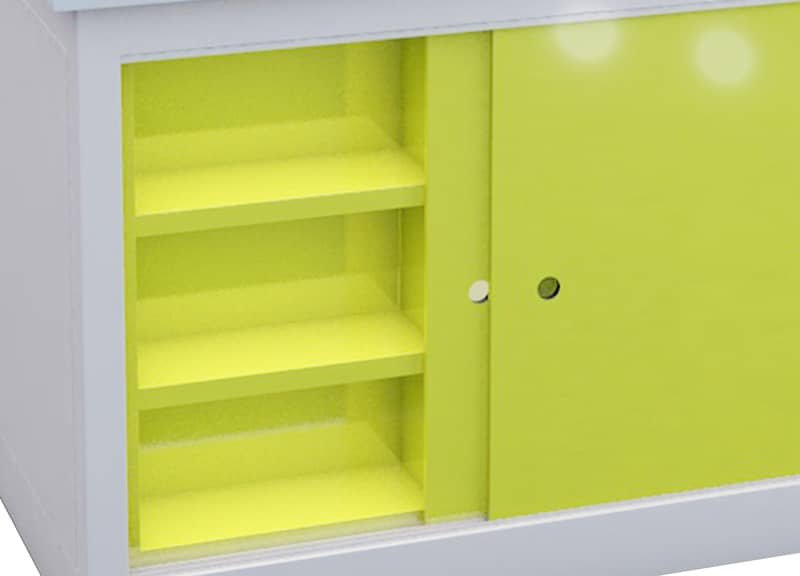

The Cabinet with 3 Layers
Cabinet with 3 layers to allow students to create jaw models, tools etc.
Students can keep their handpieces and instruments in individually configurable cabinets. These can, as required, include drawers and/or cupboards. The drawers and doors are lockable, and the drawers have an auto track/lock system.

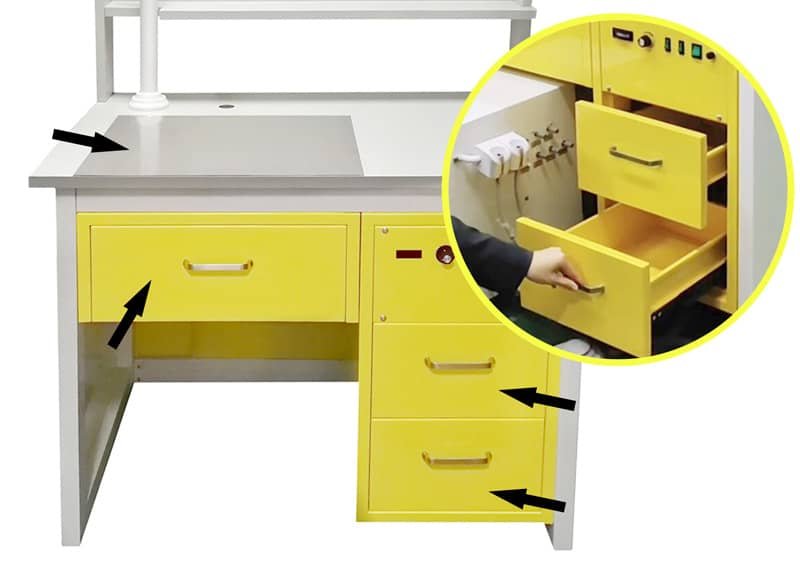

Metal Workbench and 3 Drawers
Dental simulator- with 3 large drawers, and is designed to be used as a lab bench. One table two usages. For multi-functional usage, the working table surface is more fireproof, more safe, and has a better overall performance.

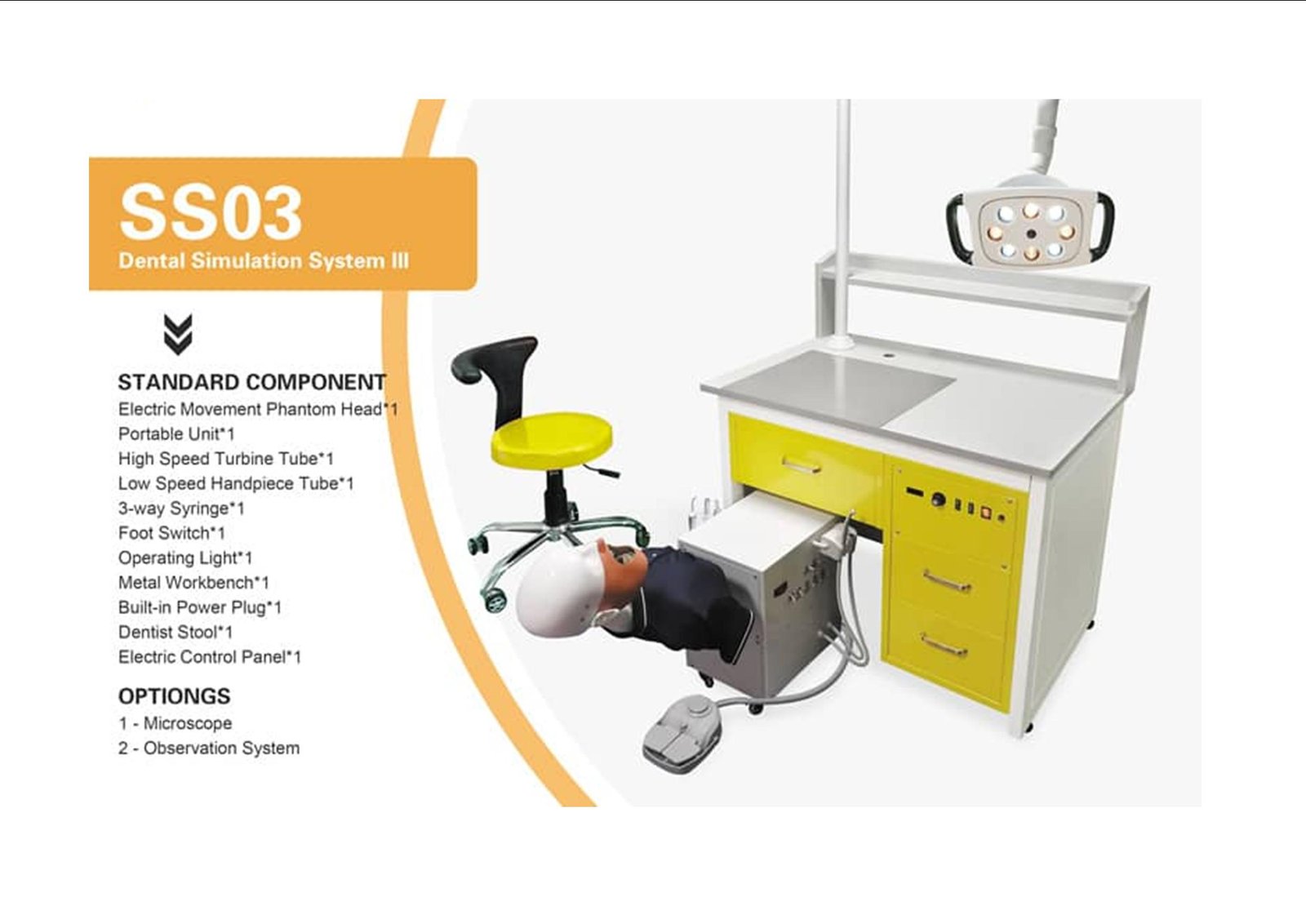

Standard Component
| Electric Movement Phantom Head*1 | Operating Light*1 |
| Portable Unit*1 | Metal Workbench*1 |
| High Speed Handpiece Tube*1 | Built-in Power Plug*1 |
| Low Speed Handpiece Tube*1 | Dentist Stool*1 |
| 3-way Syringe*1 | Electric Control Panel*1 |
| Foot Switch*1 |
Options
| High Speed Handpiece |
| Low Speed Handpiece |
| Microscope |
| Observation System |
Technical Parameters
| Voltage | 220V±22V |
| Frequency | 50-60Hz |
| Air Pressure | ＞0.55Mpa |
| Air Flow Rate | ＞50L/min |
| Water Pressure | 0.2-0.4Mpa |
| Water Flow Rate | ＞10L/min |
| Temperature | 5-40℃ |
| Relative | ＜80% |

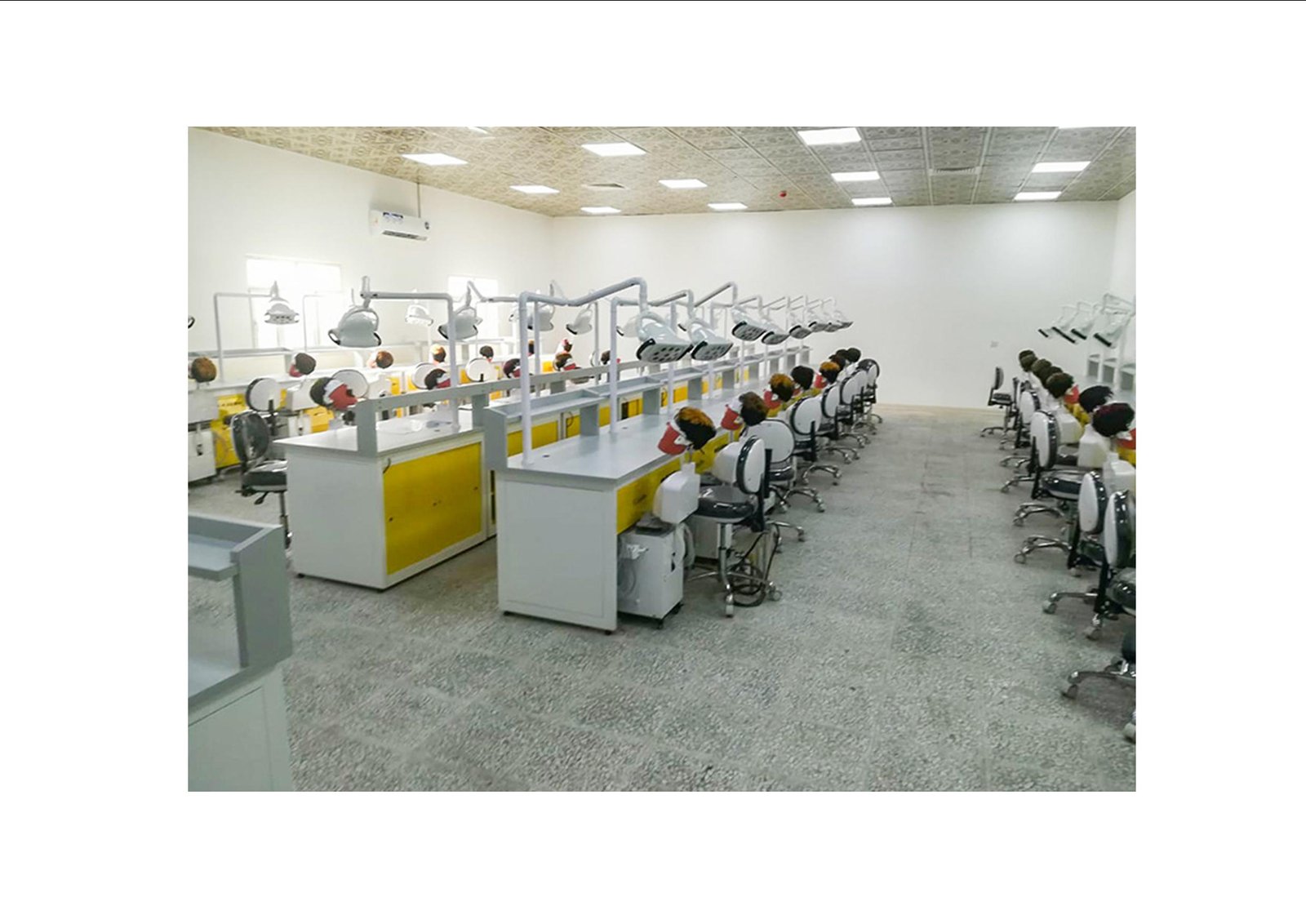

Our Dental Simulation System SS03 Project
